Animal Dung / Horse Manure / Cow Dung Wood Pellet Maker Machine 5T/H Capacity

Model Number : Pellet line

Certification : CE

MOQ : 1 set

Price : USD10000~USD30000 per set

Payment Terms : T/T, L/C, Western Union, Paypal

Supply Ability : 5 set per month

Delivery Time : 25-30 days

Packaging Details : container

capacity : 4-5t/h

voltage : 380V / 3 phase / 50hz (optional)

crushing section : crushing, drying, pelleting, cooling, dedusting, packing

drying section : drum dryer, belt conveyor

pelleting section : ring die wood pellet machine

cooling section : cooling separator, draught fan

dedusting section : dust collector

packing section : automatic packing machine

Contact Now

Animal dung, horse manure, cow dung pellet line, complete pellets making line
Capacity:
4-5T/H

Function:
The complete line is used for making animal dung into pellets. And it contains crushing, drying, pelleting, cooling, dedusting and packing sections.

Feature:
Compact structure, scientific and reasonable design, durable operation, and simple maintenance.

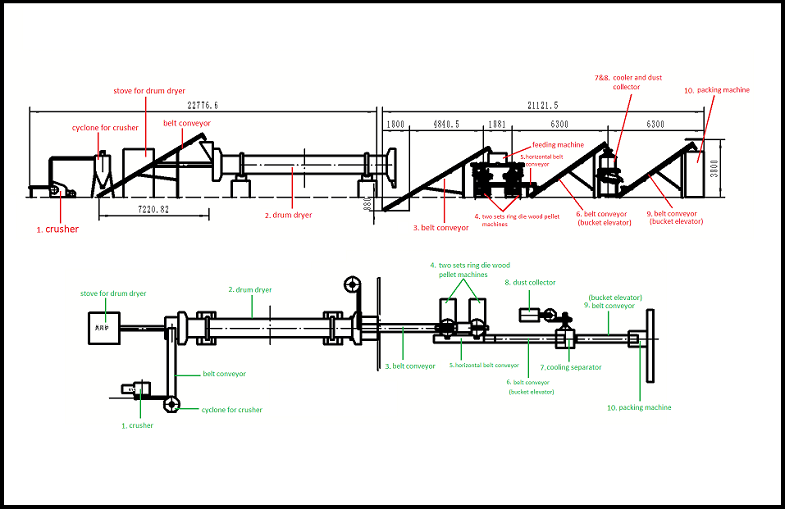

Design drawing:

Technical parameter:

Process	Commodity	Motor	Power	Function
crushing	1. Multi-function crusher	Main motor	0.75KW	crushing the animail dung into powders
crushing	1. Multi-function crusher	Air-lock valve motor	0.55KW	crushing the animail dung into powders
drying	2. Drum dryer	Input belt conveyor motor	2.2KW	reduce the moisture content of the animal dung
		Input air-lock motor	1.1KW
		Speed reducer motor	7.5KW
		Blower motor	11KW
		Output air-lock motor	1.1KW
		Ouput belt conveyor motor	1.5KW
pelleting	3. 8m Belt Conveyer	Main motor	1.1KW	making the animal dung powders into pellets
	4. Ring die wood pellet mill 560-110	Main motor	110KW
		Feeder motor	1.5KW
		Dial tray motor	1.5KW
		Gearbox motor	0.55KW
		Lubrication machine motor	1.1KW
	5. 4m Belt Conveyer	Main motor	1.1KW
cooling	6. 6m Belt Conveyer	Main motor	1.1KW	lower the temperateure of the final pellets
	7. Cooling seperator	Draught fan motor	7.5KW
		Control feeding motor	1.5KW
		Vibration motor	1.1KW
dedusting	8. Dust collector	Draught fan Motor	2.2KW	remove the dust
Packing	9. 6m Belt Conveyer	Main motor	1.1KW	packing the final pellets into bags
Packing	10. Automatic packing machine	Air compressor Motor	1.1KW	packing the final pellets into bags

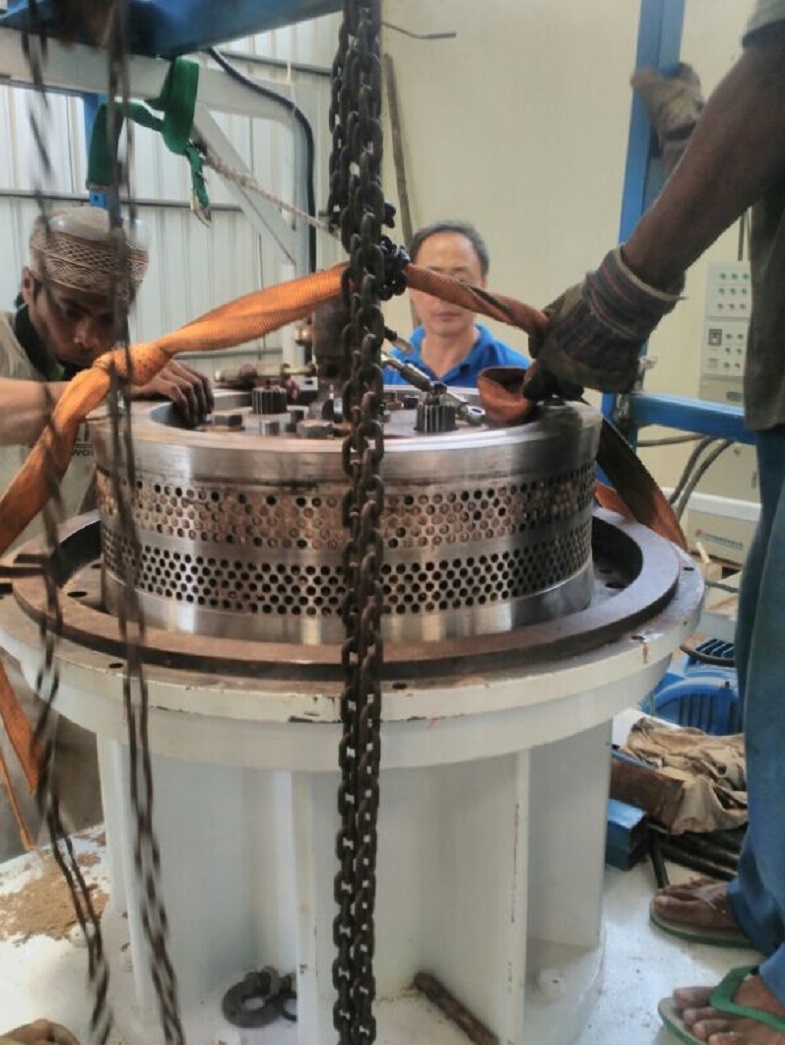

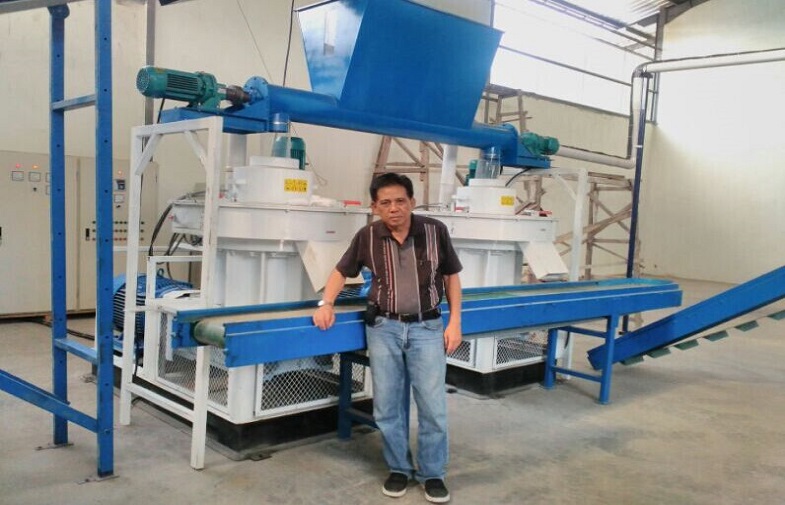

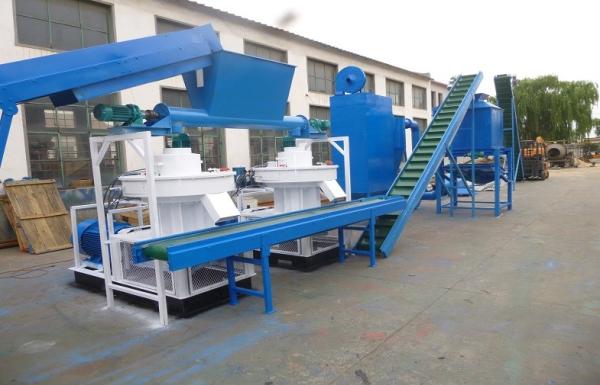

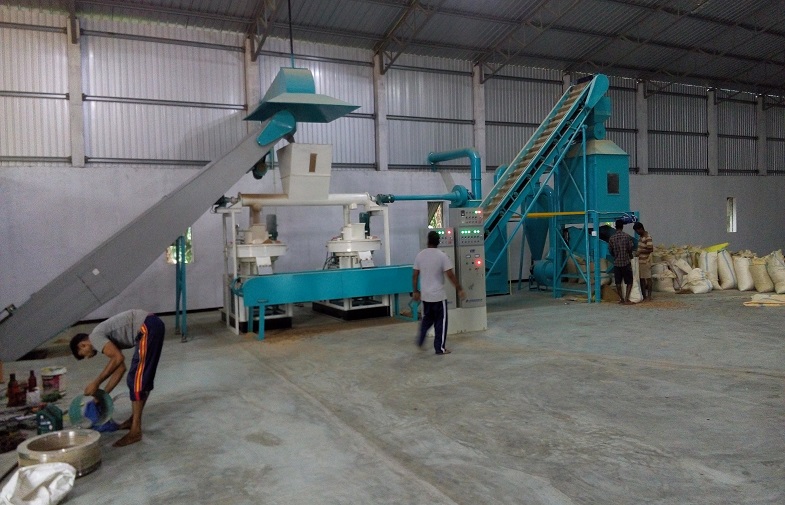

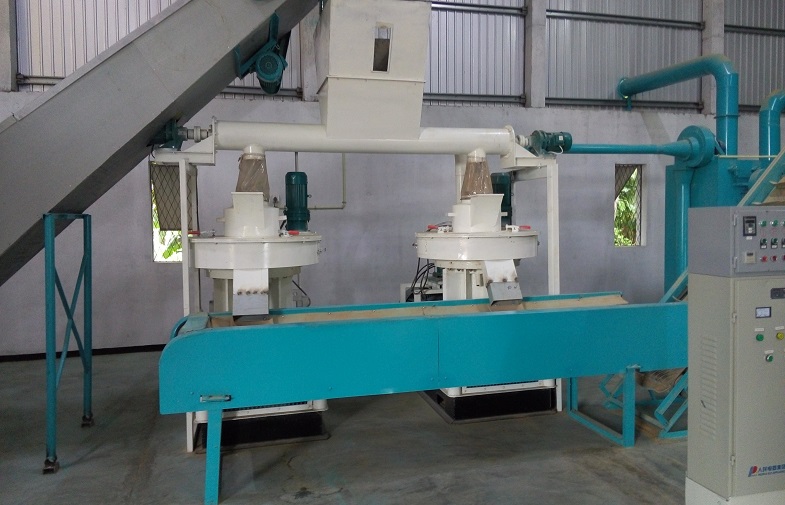

Photos:
