palm empty fruit bunch complete wood pellet line, capacity 5-6T/H, palm EFB pellet making line

Product Categories
Beijing Silk Road Enterprise Management Services Co.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

palm empty fruit bunch complete wood pellet line, capacity 5-6T/H, palm EFB pellet making line

Model Number : EFB pellet line

Certification : CE, ISO

MOQ : 1 set

Price : USD20000~USD60000 per set

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 5 sets per month

Delivery Time : 30-45 days after receive client's deposit

Packaging Details : standard export package

power of shredder : 45KW * 2

power of hammer mill : 55KW + 3KW + 0.55KW

power of belt conveyor : 1.1KW

power of pellet machine : 110KW + 1.5KW + 0.55KW + 1.5KW

power of cooling seperator : 15KW + 1.1KW + 1.5KW

power of dust collector : 15KW

power of surge bin : 1.5KW * 2

Contact Now

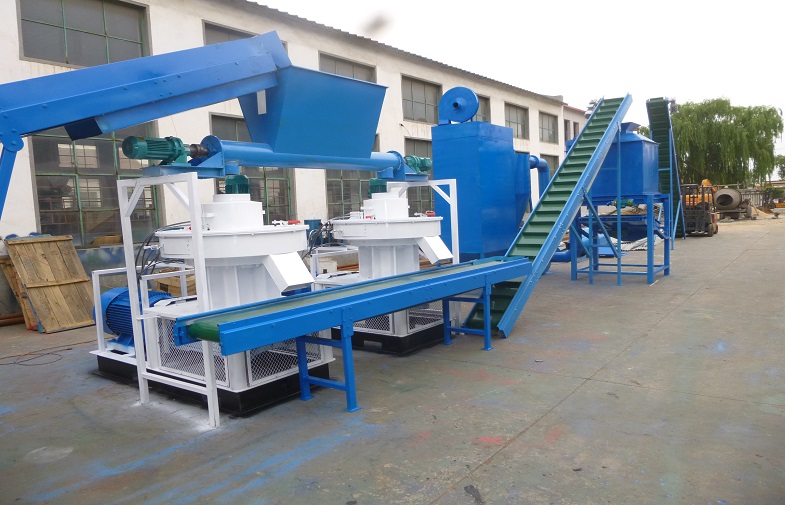

5-6T/H palm empty fruit bunck pellet making line

Crushing section

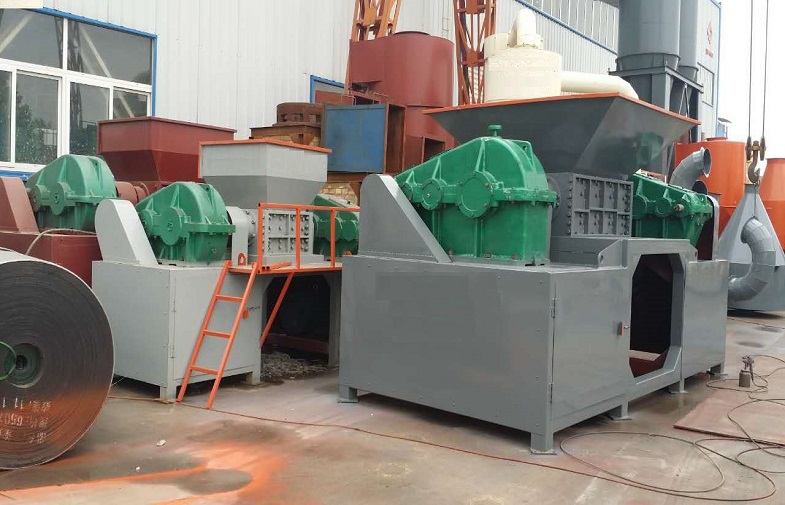

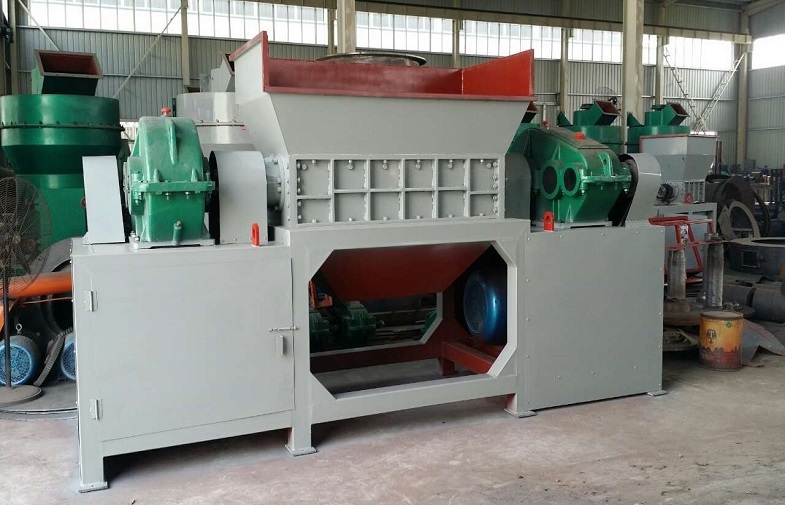

101 Double-roller shredder

Function: Shred the wooden pallets into small wood chips, and romove the nails.

commodity motor power capacity
double-roller shredder main motor 45KW * 2 5-10T/H

102 Hammer mill

Function: crush the wood chips into wood sawdust.

commodity motor power capacity
hammer mill main motor 55KW 1-1.5T/H
draught fan motor 11KW
air-lock valve motor 1.1KW

Pelleting section

201 Belt conveyor

Function: transfer the wood sawdust into feeder of pellet machine.

commodity motor power capacity
belt conveyor main motor 1.1KW 1T/H

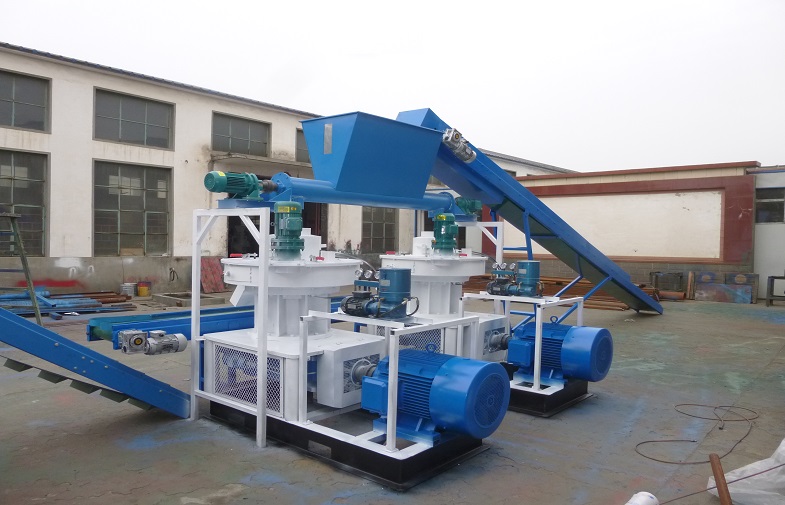

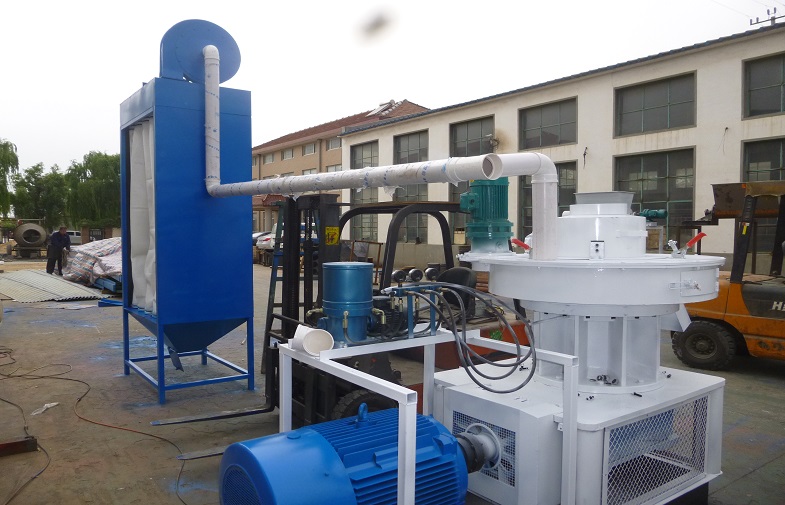

202 Ring die wood pellet machine

Function: press wood sawdust into wood pellets.

commodity motor power capacity
ring die wood pellet machine 450-75 main motor 110KW 1.5-2T/H
feeder motor 1.5KW
gearbox lubrication machine motor 0.55KW
main shaft and roller bearings lubrication machine motor 1.5KW

Cooling section

301 Belt conveyor

Function: transfer the wood pellets into cooling seperator

commodity motor power capacity
belt conveyor main motor 1.1KW 1T/H

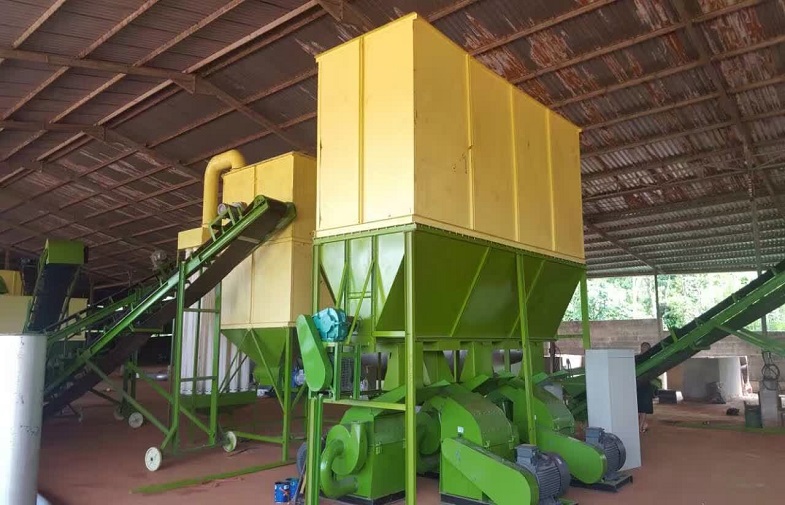

302 cooling seperator

Function: reduce the temperature of the wood pellets

commodity motor power capacity
cooling seperator draught fan motor 15KW 5-6T/H
control feeding motor 1.5KW
vibrication motor 1.1KW

303 dust collector

Function: seperate the dust from pellets

commodity motor power capacity
dust collector draught fan motor 15KW 5-6T/H
